Attributes
An Attribute is a structured field that lets you capture information beyond a Shape or an entire Asset: a color, a severity level, a quality score, or any other property specific to your use case. Two kinds of Attribute coexist on Picsellia: Shape Attribute, attached to a Label and filled in per Shape, and Asset Attribute, attached to the whole Asset.
For Computer Vision teams, Attribute are what turn a DatasetVersion into more than a set of Label: they let you run structured quality control, filter or aggregate on criteria that a Label alone can't express, and capture business-specific information (severity, quality grade, condition) directly next to the Shape or Asset it describes, instead of relying on free-text notes or spreadsheets kept outside Picsellia.
1. Shape Attribute
Shape AttributeA Shape Attribute is defined at the Label level and is filled in when annotating for each individual Shape using that Label.
It is created and defined from the DatasetVersion Settings, in the Labels page, using the + Add attribute button next to a Label, as introduced here.

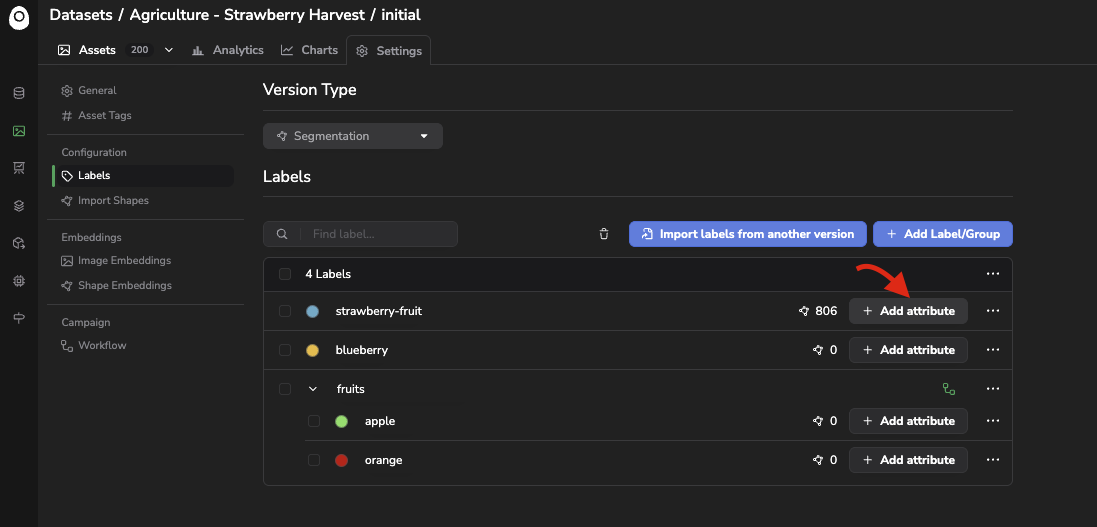

Shape Attribute creation
Creating or editing a Shape Attribute lets you configure:
-
A name.
-
A Type: String, Integer, Float, or Boolean.
-
Whether it is Required.
-
Under Advanced parameters: a predefined list of Choices (not available for the Boolean type), Allow multiple answers to let several Choices be selected at once, and, for Integer or Float, a Min / Max bound.
-
An optional input style, which chooses the control the annotator is given in the Annotation tool instead of the plain field of the Type:
- Slider, for an Integer or a Float that declares a Min and a Max.
- Dropdown, for an
Attributewhose Choices accept a single answer. - Toggle, for a Boolean, with optional labels replacing True and False (for instance Occluded / Visible) so the annotator reads the question instead of interpreting it.
The style is dropped when the configuration no longer allows it, for instance when you remove the bounds of a slider. Leaving it empty keeps the standard field, and every
Attributeconfigured before this option existed is unaffected.
An Edit / Preview switch at the top of the form displays the Attribute exactly as the annotator will see them in the Annotation tool, which is the quickest way to check that a list of Choices is readable and that a slider is bounded the way you intended. Nothing you type in the preview is saved.
When a Label needs the same Attribute as another one, the Copy from label dropdown of the form fills it with the active Attribute of the Label you pick. The Attribute already present in the form are kept — a notification names the keys that were skipped — and nothing is saved until you submit the form. The dropdown is only displayed when another Label of the DatasetVersion already carries Attribute, and it is not offered on Asset Attribute.

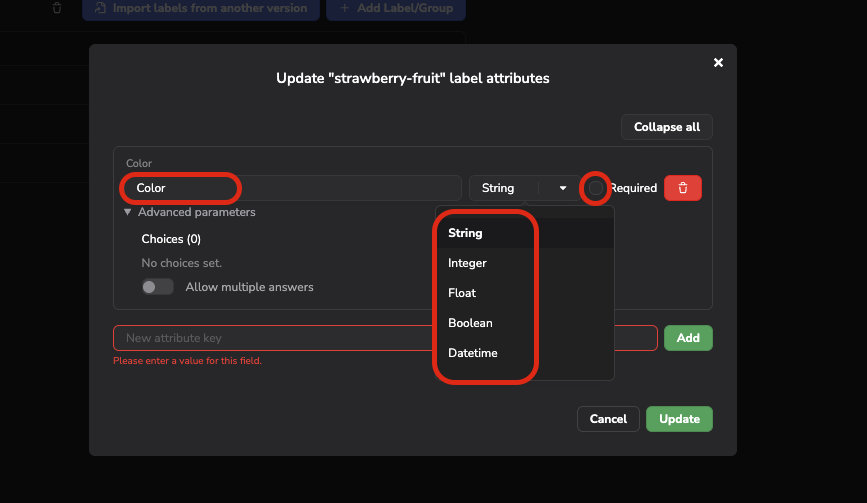

Definition of attribute Name, Type, and whether it is required

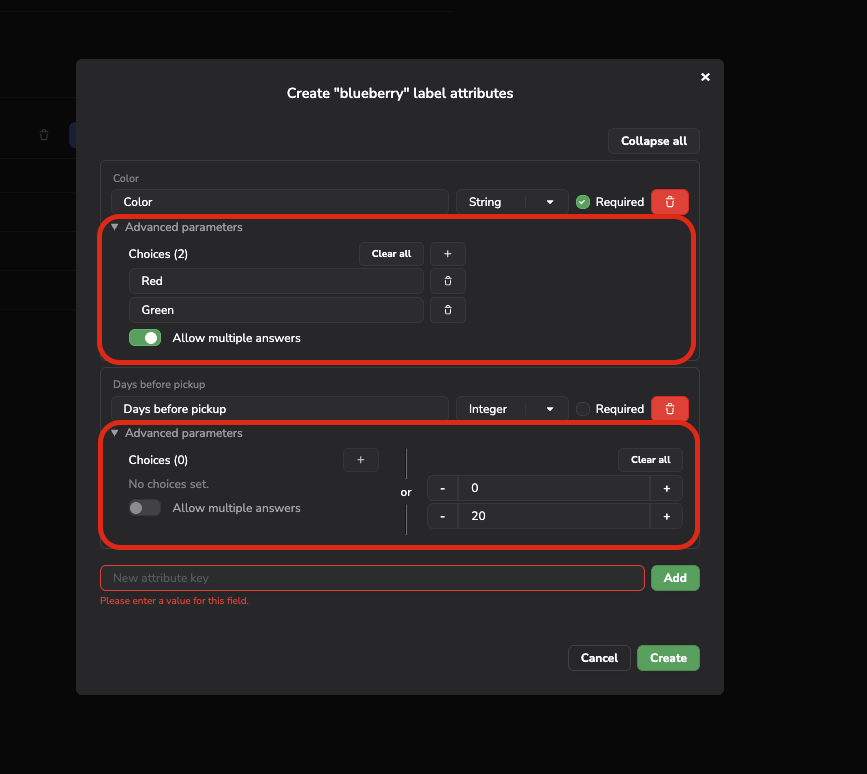

Advanced capabilities to define rules on the potential values based on the attribute type
Once all the Shape Attributes for the selected Label are properly defined, you can click on the Create button and potentially do the same for any other Label of the current DatasetVersion that needs Shape Attributes. The number of Shape Attributes defined per Label is then displayed in the Labels page as shown below:

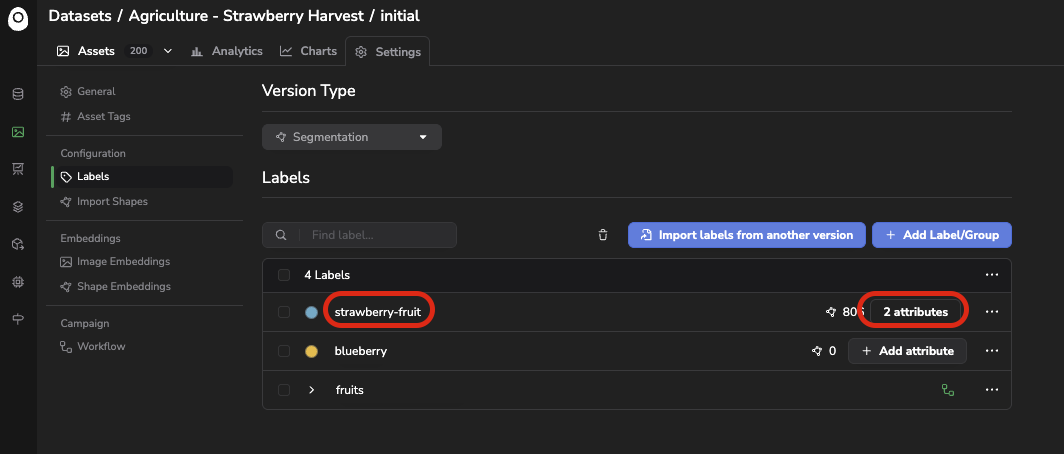

Number of Shape Attributes defined per Label
You can edit or delete an existing Shape Attribute at any time, by clicking on the ... button next to any Label.

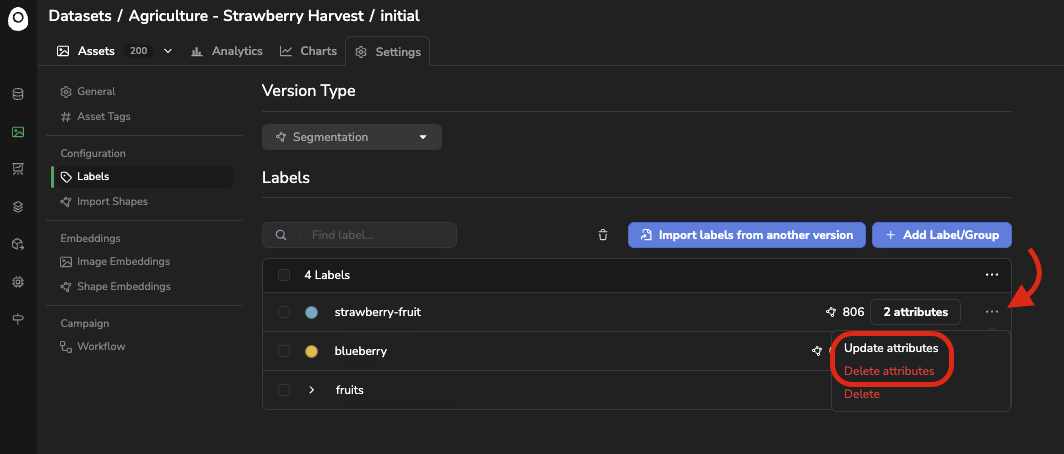

Update / Delete Attributes
The Delete Attributes option will permanently delete all the Shape Attributes configuration and all the associated values for the selected Label.
By clicking on Update Attributes, you will have the possibility to edit the configuration (Name, Type, whether it is required, the Advanced Parameters) for each Shape Attribute of the selected Label. Once the changes are done, you simply need to click Update to take them into account. Please note that it won't affect the values already created in the Annotation Tool (or via SDK), only the to-be-created ones will be guided by the newly edited configuration.

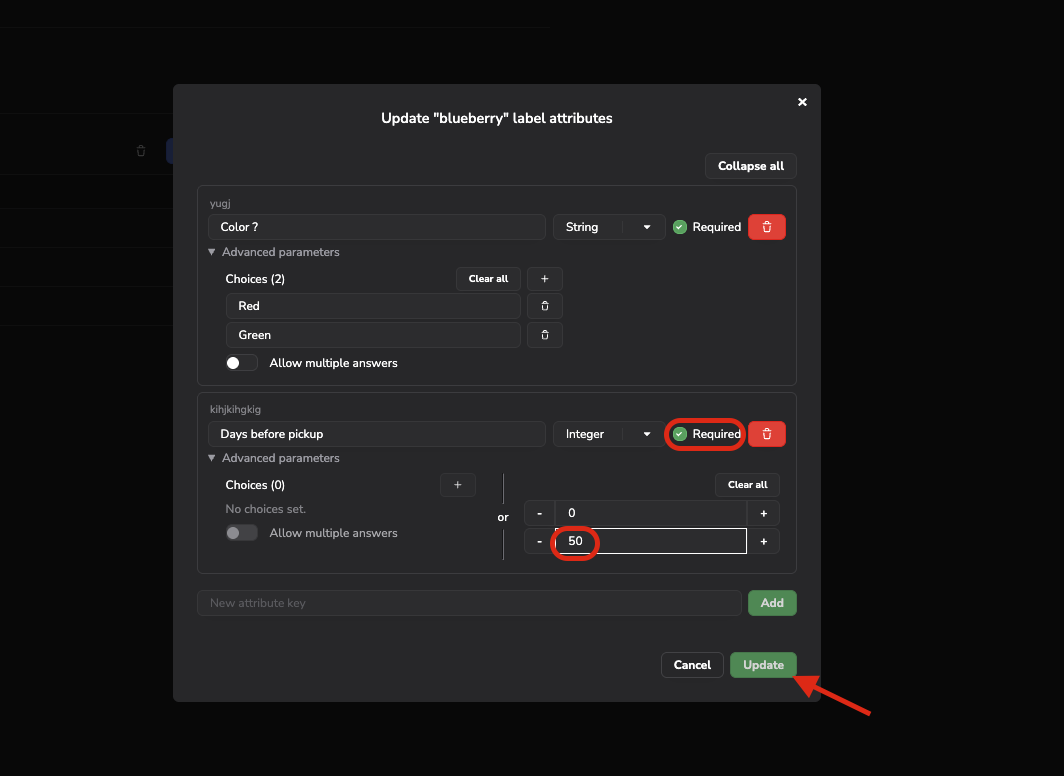

Shape Attributes configuration update

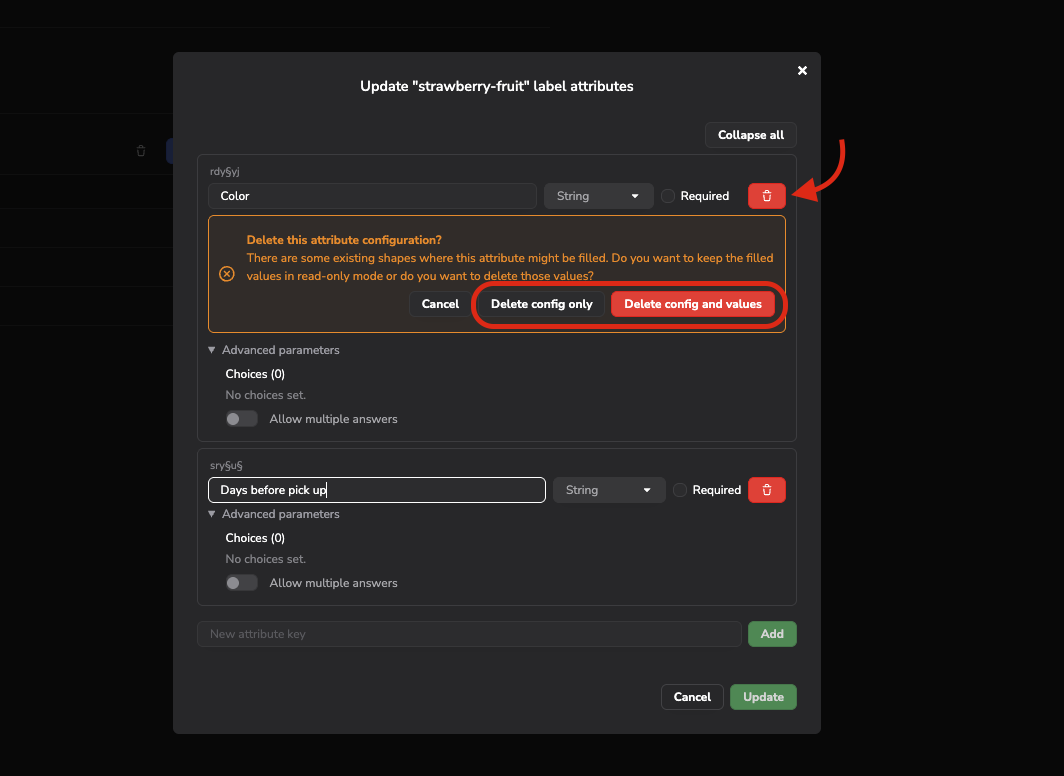

From the Shape Attributes update form, you can also perform a soft delete of any Shape Attributes; rather than being completely deleted, a Shape Attribute can also be archived: it disappears from the annotation experience in the future while its already-recorded values are preserved, and an archived Attribute can no longer be Required. In that case, you need to click on Delete config only. If you want to delete the Attribute config and its associated value, click on Delete config and values.

2. Asset Attribute
Asset AttributeAn Asset Attribute uses the same configuration mechanism as a Shape Attribute (name, Type, Required, Choices, Allow multiple answers, Min / Max), but is attached directly to the Asset as a whole rather than to a single Shape. This lets you capture information that describes the entire Asset rather than one specific object within it, for instance the weather conditions or the acquisition device for an image, independently of how many Shape it ends up being annotated with.
Unlike a Shape Attribute, an Asset Attribute isn't attached to any particular Label. It is configured from the same DatasetVersion Settings Labels page, but through the ... menu in the header of the Label table (next to the Label count), rather than through a specific Label row.

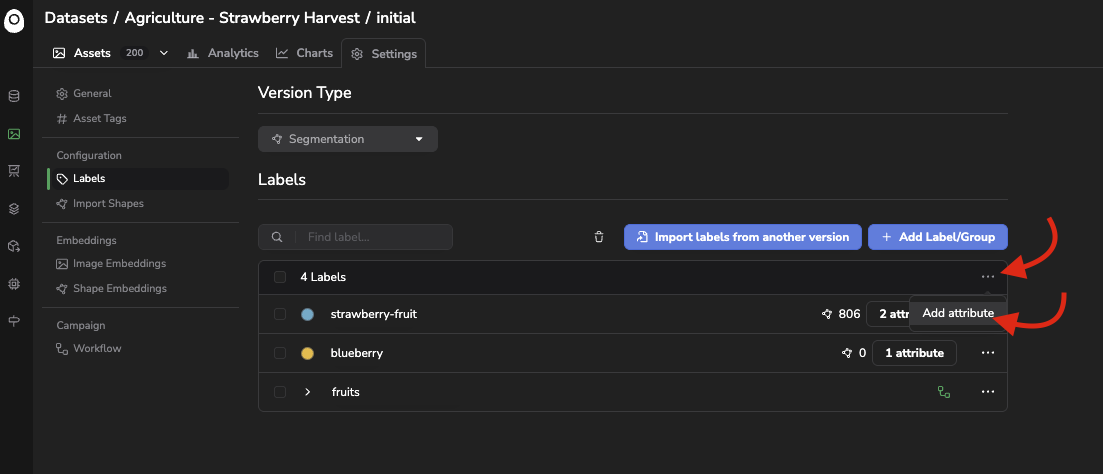

Create an Asset attribute
The Asset Attribute creation form works the same way as Shape Attributes:

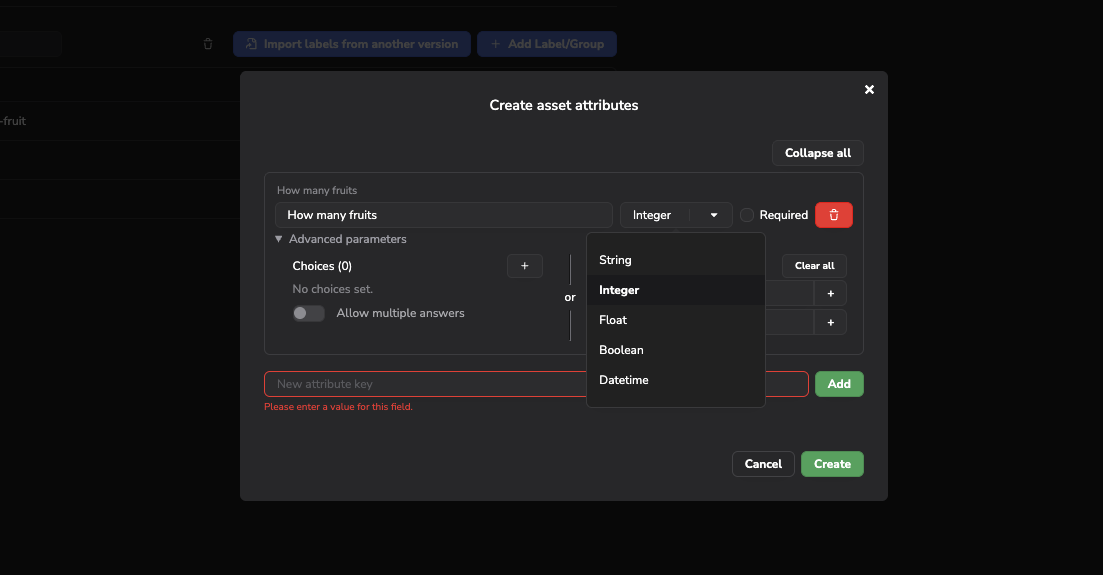

Asset Attribute creation
Once created, it also works the exact same way as Shape Attributes to update the configuration or delete Asset Attributes, whether it is a complete deletion or an archiving of the values.

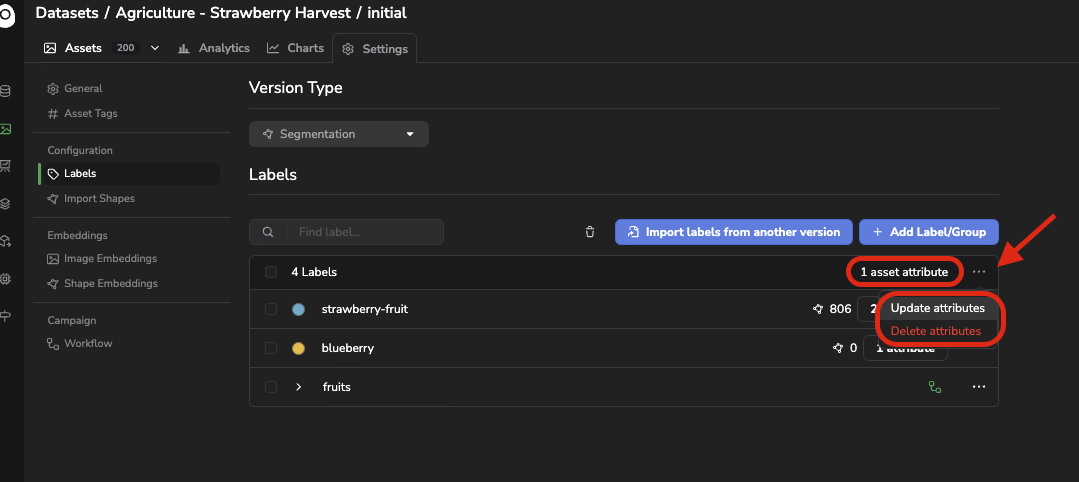

Update or Delete Asset Attributes
3. Fill in Attribute values
Attribute valuesWe now consider that all the necessary Asset Attributes and Shape Attributes have been defined as detailed in the previous paragraphs. It is time to check how to give values for these, for each Asset or Shape.
Attribute values are mainly filled in from the Annotation tool while annotating, in two complementary ways, which write the same values and follow the same validation rules:
- All at once, from the Attributes tab, which lists every
Attributeof the displayedAsset. ShapebyShape, from the Selection panel, which displays theAttributeof theShapeyou are working on.
The first one suits a systematic pass on an image that carries many Shape: you see at a glance what is still empty, and you do not have to select each Shape on the canvas to reach its fields. The second one suits the moment you draw or correct a Shape, when you only want the fields of that Shape in front of you.
A. All at once, from the Attributes tab
Open the Attributes tab from the right-side floating menu of the Annotation tool. It gathers, for the Asset currently displayed, the Asset Attribute and the Shape Attribute of all its Shape, whatever the Shape selected on the image. Unlike the Selection panel, it always displays the Asset Attribute, even when some Shape are selected. The Shape Attribute come as one block per Shape, named after its Label and its index (for instance person #1), with one input per Attribute configured on that Label, matching its Type and its Choices if configured. Required Attribute are marked with a red *.
You can go through the blocks one after the other and fill in every value without selecting anything on the image, then click on Save at the bottom of the panel to save the Annotation.
The panel and the canvas stay in step with each other, which matters as soon as an Asset carries more Shape than the panel can display at once:
- The block of each selected
Shapeis outlined, and the panel scrolls to the lastShapeyou selected on the image, whether you select it before or after opening the panel. A block that holds an invalid value keeps priority for that scroll. - Each block carries a focus button that does the opposite: it selects that
Shapealone on the image and zooms on it, so you can check what you are describing. On video, it selects the wholeTrackand moves the playback cursor to its first keyframe. It is disabled on a lockedShape, as in the Shapes panel.
When some values are invalid, a red badge on the Attributes icon carries the number of values that still need to be fixed, which tells you whether you can safely move on to the next Asset.

Attributes menu
B. Shape by Shape, from the Selection panel

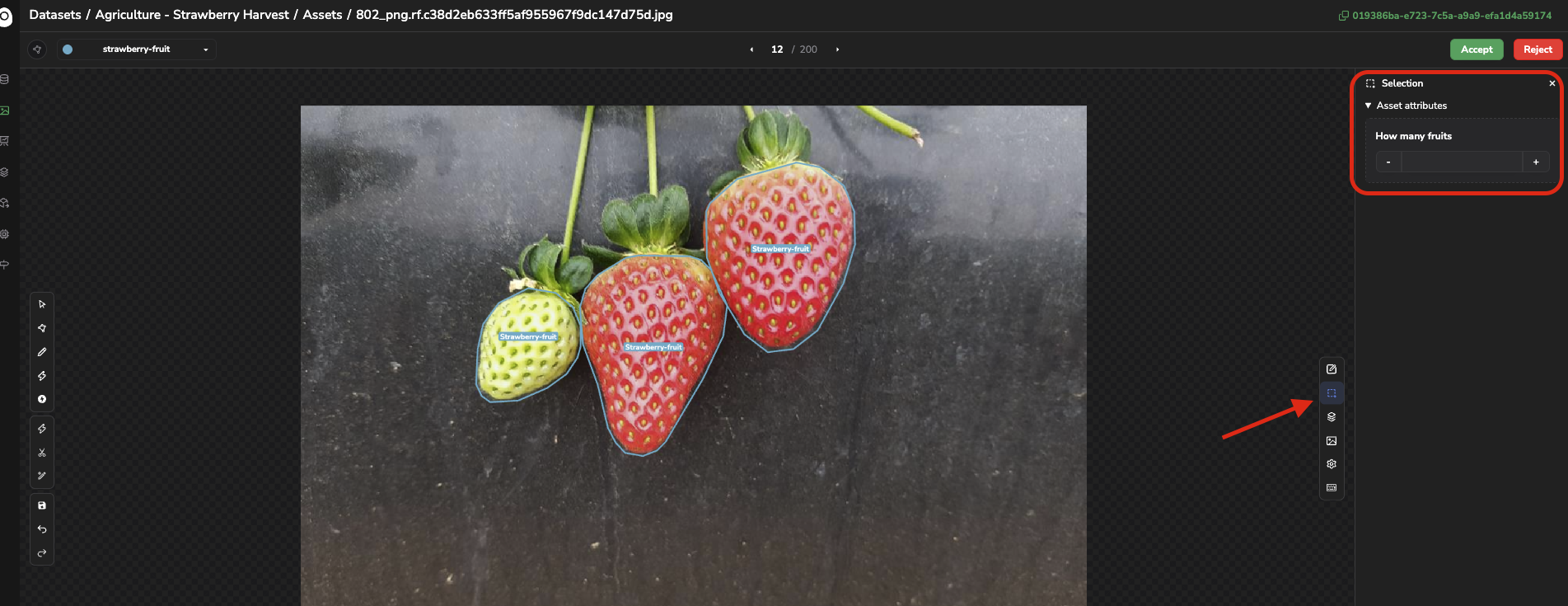

Shape by Shape, from the Selection panelIn the Annotation tool, access the Selection panel from the right-side floating menu, as shown below:

Selecting a Shape does not open anything by itself: the panel is the one you opened, and it adapts to your selection. When no Shape is selected, or when several are, it displays the Asset Attributes, with the possibility for the user to fill in the available Asset Attributes.

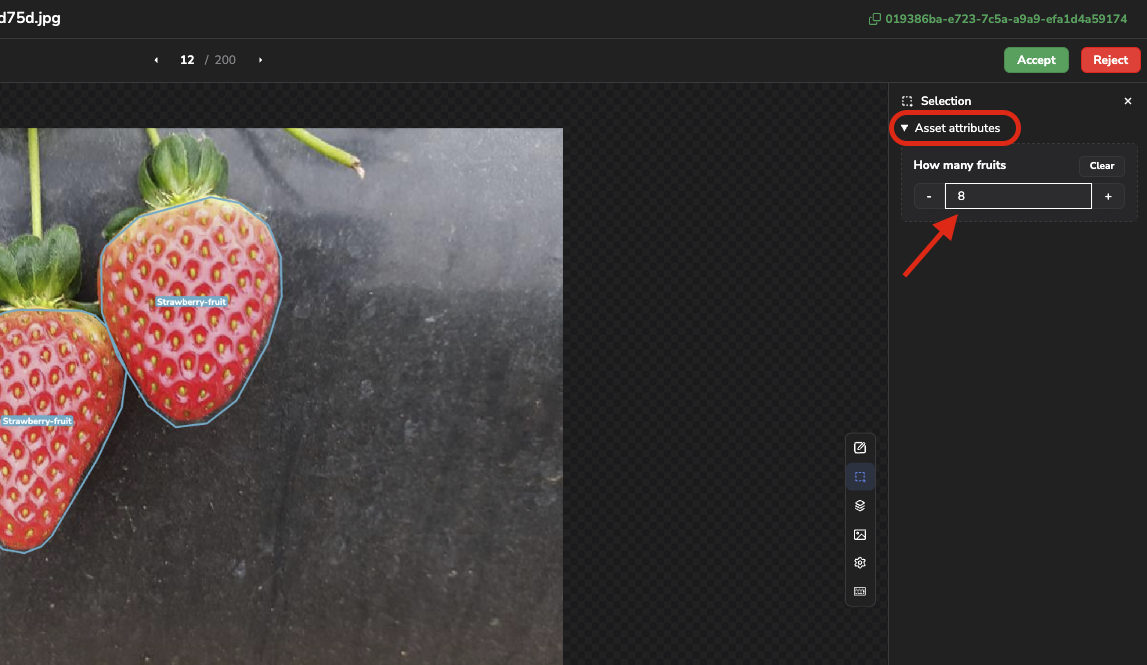

Fill in Asset Attribute
When only one Shape is selected, the Selection panel displays instead all the information that is related to this one, meaning Label, Text field, coordinates (for Bounding Boxes and Keypoints only), and the Shape Attributes. From that panel you'll be able to fill in the different values (as defined in the configuration) for all the Shape Attributes that are related to the Label of the selected Shape.

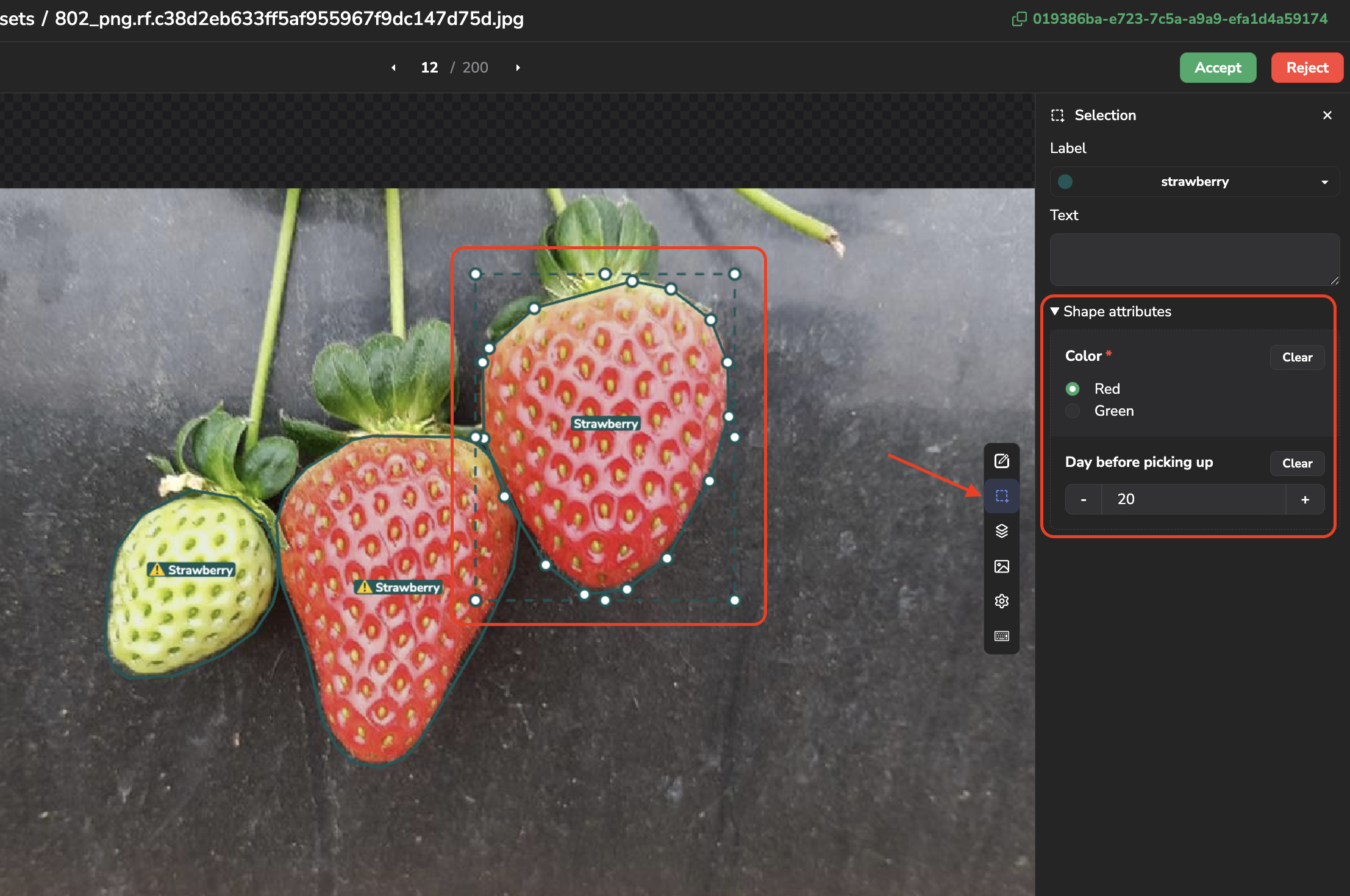

Fill in Shape Attributes
C. Validation and read-only Attribute
AttributeThe Attribute of the Attributes tab and of the Selection panel are read-only whenever the Annotation itself cannot be edited: with a reader access on the DatasetVersion, or on a Task you are not meant to edit — one that is already Done or Accepted, one that has been Skipped, or one assigned to someone else. You still see the recorded values, the fields cannot be changed, and no Save button is offered.
InvalidAttributevalues block savingEvery value you type is checked against the configuration of its
Attribute, from the moment theAnnotationis loaded, wherever you fill it in. ARequiredAttributeleft empty, a number outside the configured Min / Max, or a value that is not one of the configured Choices is flagged on the field that carries it, theShapeconcerned is marked in the Shapes panel and on theAsset, and the Attributes tab displays the number of values that still need to be fixed.Saving the
Annotationwith an invalid value fails: an error names theShapeand theAssetconcerned, theAttributesection opens, and it scrolls to the first field to correct. For a Computer Vision team, this is what keeps aDatasetVersionfree of half-filledAttributethat a training script would have to guess around later.

Attribute save error
4. Manipulation of Attribute (Annotation Import/Export, SDK, Fork..)
Attribute (Annotation Import/Export, SDK, Fork..)- When forking a
DatasetVersion, the existingAttributeconfigurations (AssetandShape) and the associated values for the forked objects are kept. - When importing
Labelfrom anotherDatasetVersion, eachLabel'sShape Attributeconfiguration can be carried over along with it if the associated checkbox is ticked.

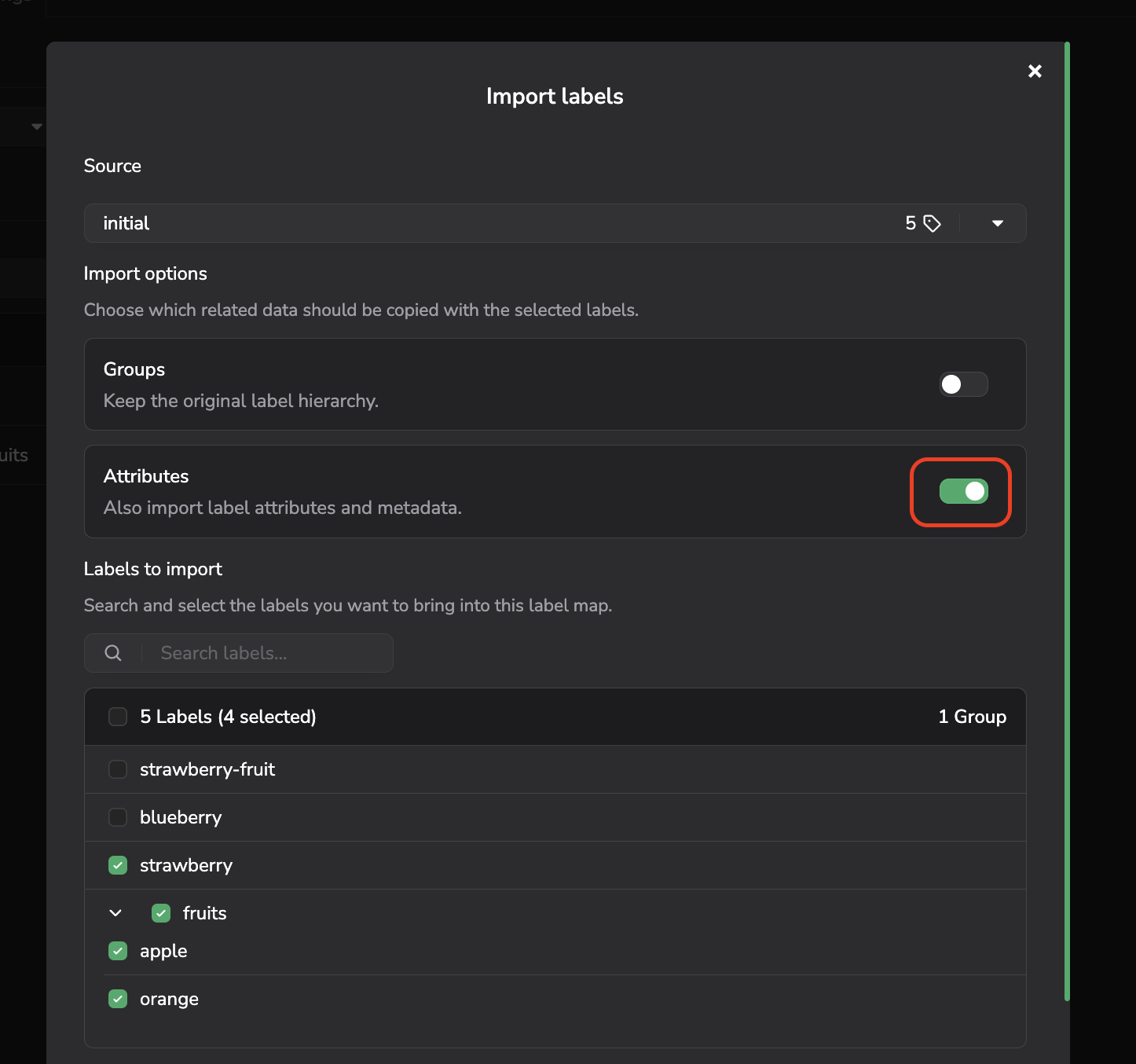

Carry Attributes during Label import
- Exporting a
DatasetVersionto a COCO annotation file includes anattributeskey filled with theShape AttributeandAsset Attributevalues of yourAnnotation. Importing a COCO annotation file that contains such anattributeskey saves those values back onto Picsellia. - On video
Asset,Attributevalues are saved on theTrackof anAnnotation, and they are included in COCO exports of the videoAnnotationtoo, as detailed in Export video Annotation. - From the SDK, the
Attributeconfiguration is managed withget_attributes()/set_attributes(), available on bothLabel(Shape Attribute) andDatasetVersion(Asset Attribute).Attributevalues themselves are exposed through theattributesproperty, available on anAnnotation(Asset Attributevalues) and on everyShapetype (Shape Attributevalues).
5. Filter on Attribute values
Attribute valuesRecording an Attribute value pays off when you can retrieve the Asset carrying it: isolate every Asset graded below a quality threshold before a review round, gather the Shape marked as occluded to check how the model behaves on them, or count how many Asset were captured in a given condition before forking a DatasetVersion out of them.
Attribute are not searched through the Query Language. Instead, from the Assets overview of a DatasetVersion, use the Add filter button next to the Search Bar, detailed here, and choose what to filter on:
- An
Asset Attribute, matched against the value carried by theAssetitself. - A
Shape Attribute, matched against the value carried by aShapeof itsAnnotation. Since aShape Attributeis defined on aLabel, you select theLabelfirst, then one of theAttributeconfigured on it. AnAssetmatches as soon as one of itsShapesatisfies the filter.
The comparison proposed depends on the Attribute Type: an exact value for String and Boolean, with the configured Choices offered as suggestions when there are any, and a range for Integer and Float.
Lets start by creating a first filter on a Shape Attribute that is with the Type String and for which values can only be Red or Green as defined in the configuration by the Attribute creator.

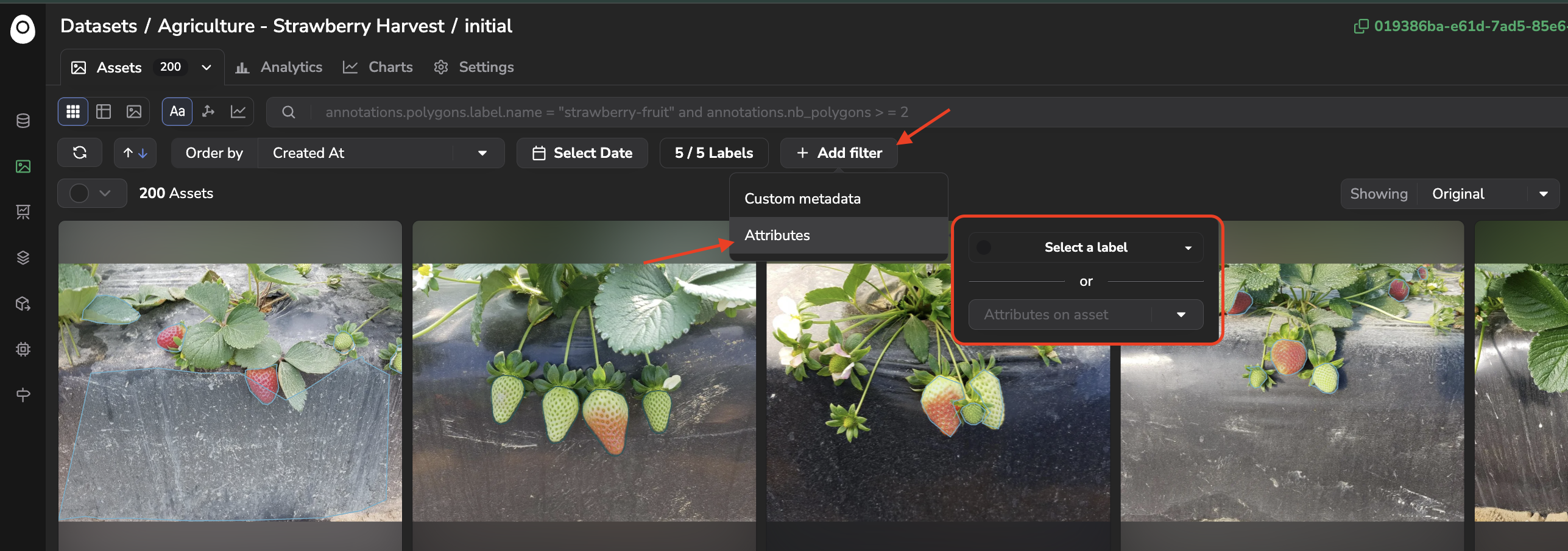

Create Attribute filter

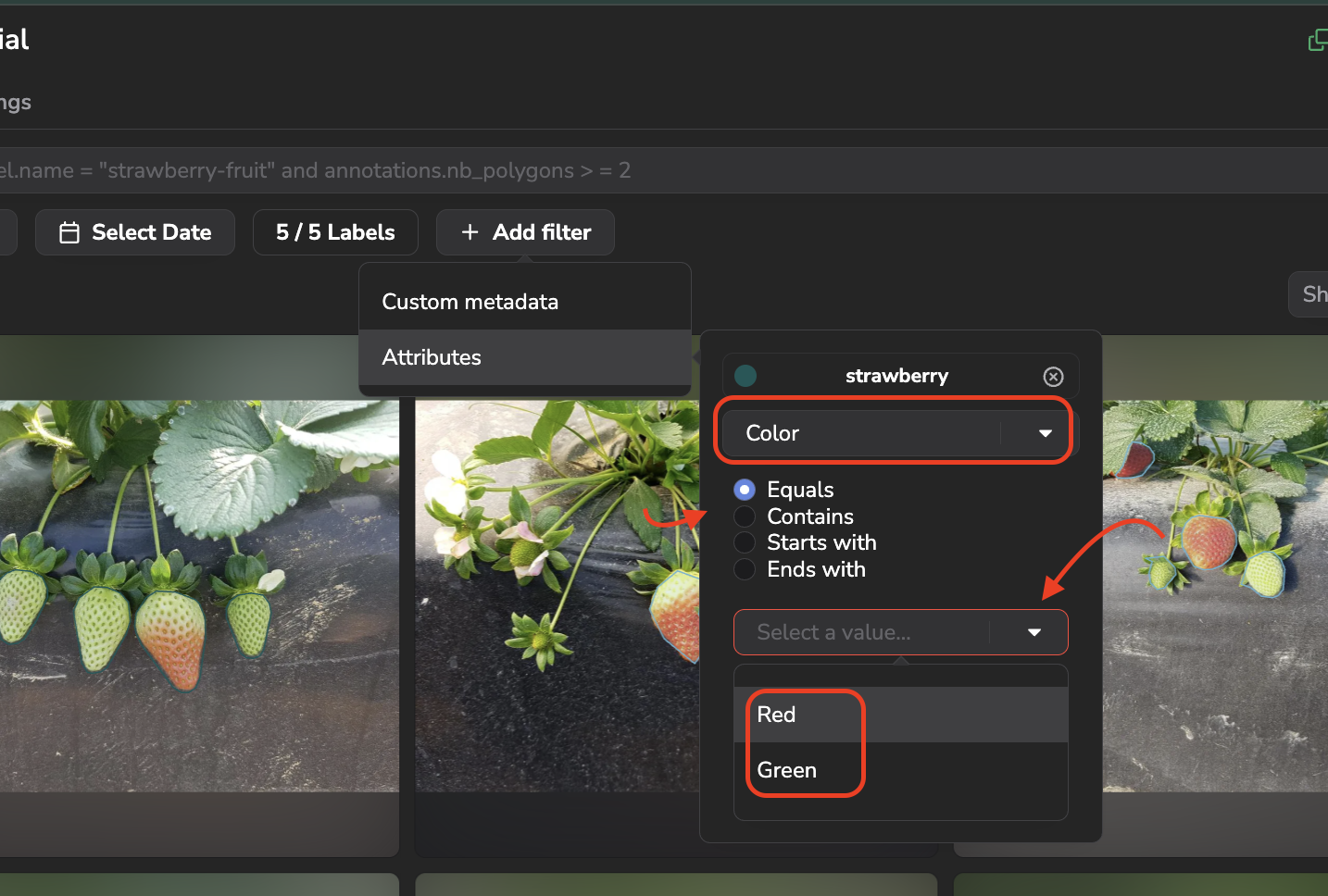

Configure Shape Attribute filter

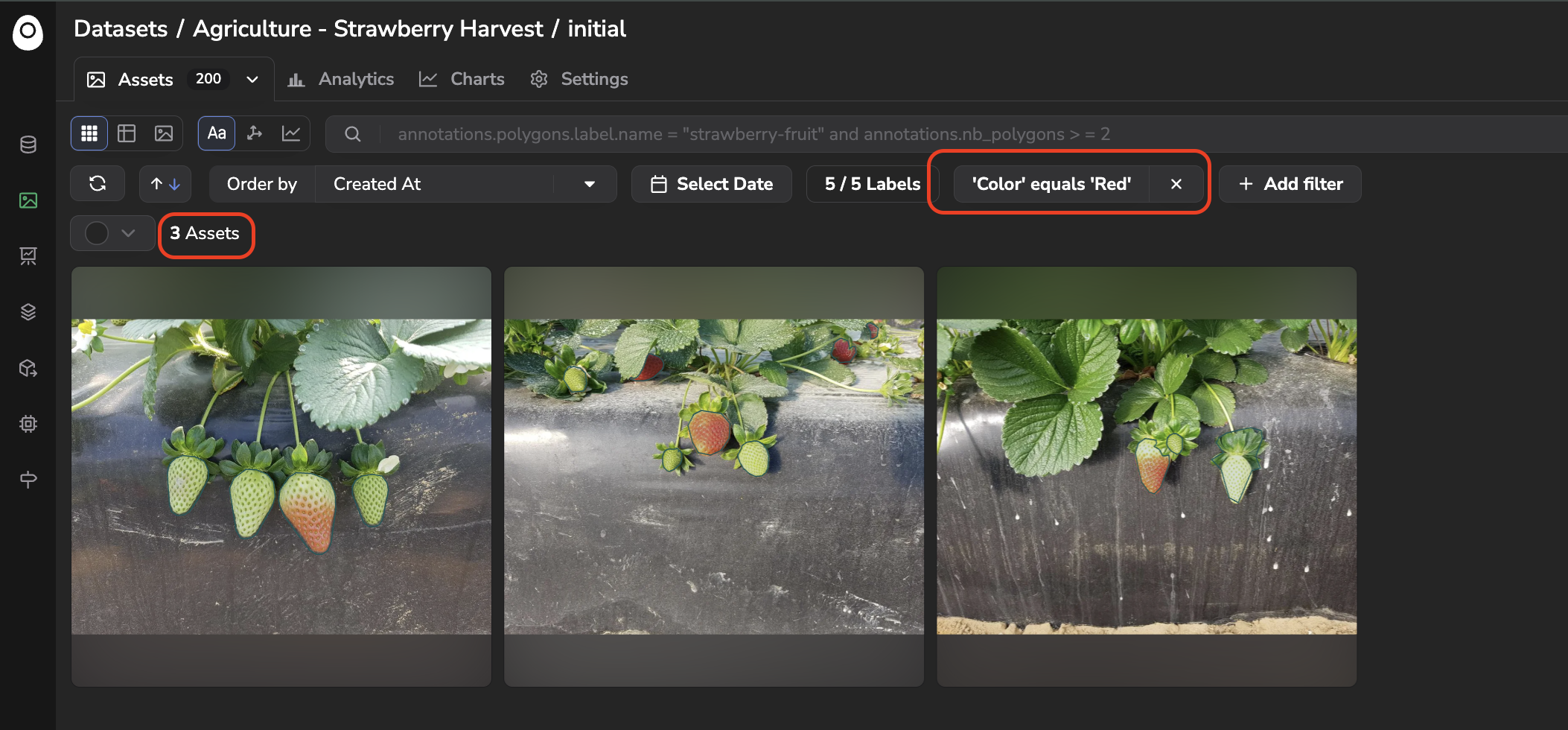

Result of the Shape Attribute filter
Lets now add a second Attribute filter this time on an Asset Attribute that is an Integer:

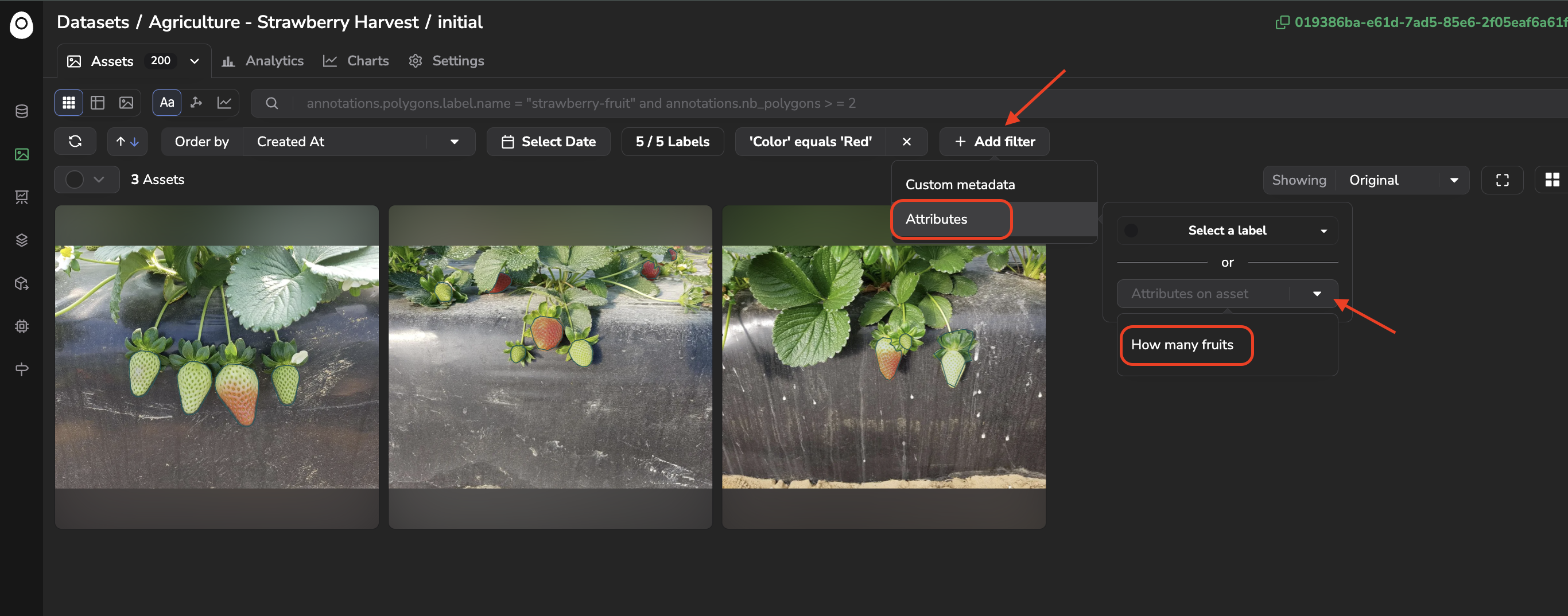

Create a second Attribute filter on Asset Attribute

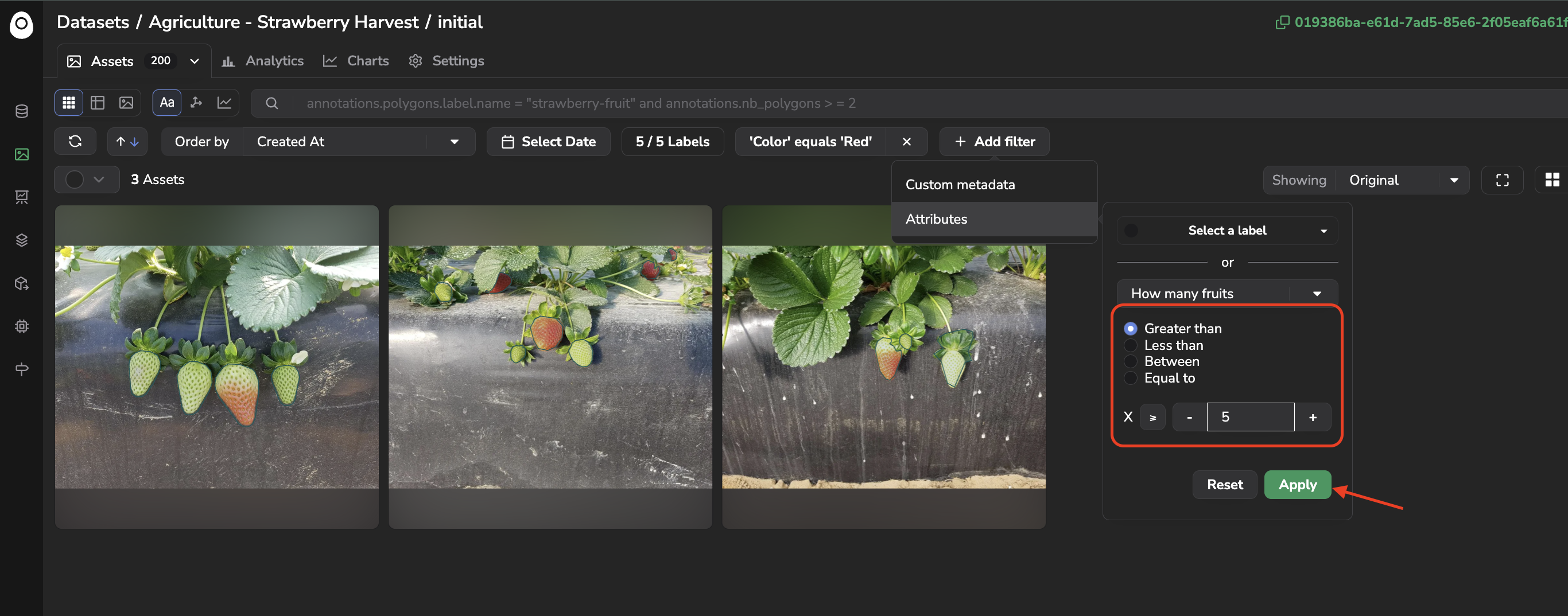

Asset Attribute filter configuration

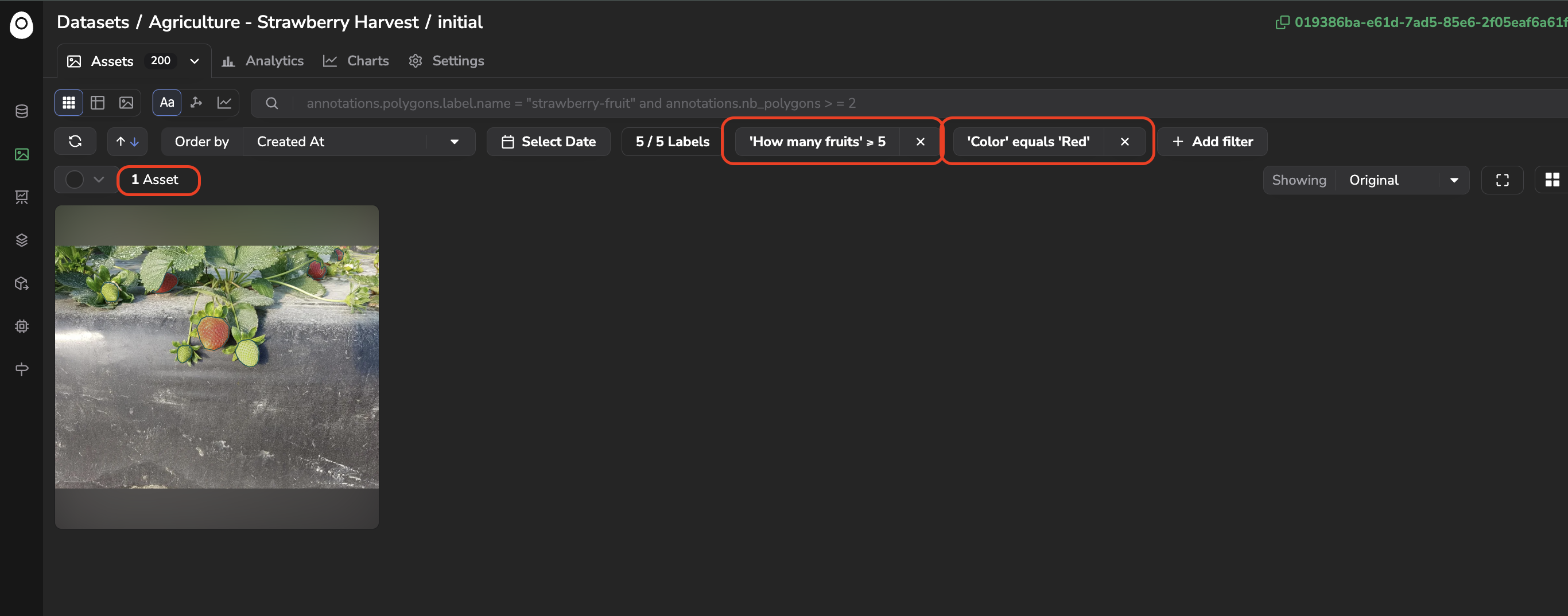

Result of the Shape Attribute filter and Asset Attribute filter
Please note that the filters (whether they are configured on Asset Attributes, Shapes Attributes or Custom Metadata) can be used with the SearchBar to create advanced ways of filtering among your DatasetVersion .
Filters are also available on
DeploymentandExperimentThese filters are also available on the
PredictedAssetof aDeploymentand on theEvaluationof anExperiment, where they apply to the predicted and reviewedShape.
